Detail
Product Parameters
The electric rated current ratio, accuracy level and rated load are as follows, and the rated secondary current is 5A or 1A
| Model | Purpose | Measuring Current Transformer
Accuracy Class and Rated Load (VA) | Protective Current Transformer
Accuracy Class and Rated Load (VA) | Dual Winding Current Transformer
Composite Accuracy Class and Rated Load (VA) |
| Rated Primary Current | 0.2s | 0.2 | 0.5 | 10P20 | 10P15 | 10P10 | 0.2s | 0.5 | 10P15 | 10P10 |
| LSY3-10/107 | 75 | - | - | 1 | - | - | - | - | 1 | - | - |
| 100 | - | - | 2.5 | - | - | - | - | 1 | - | - |
| 150 | - | - | 2.5 | - | - | 2.5 | - | 1.5 | - | - |
| 200 | - | 2.5 | 2.5 | - | - | 5 | - | 2.5 | - | 5 |
| 300 | 2.5 | 2.5 | 5 | - | - | 5 | - | 2.5 | - | 5 |
| 400 | 5 | 5 | 5 | - | - | 7.5 | - | 5 | - | 7.5 |
| 500 | 5 | 5 | 10 | - | - | 10 | - | 5 | - | 10 |
| 600 | 5 | 5 | 10 | - | - | 10 | - | 5 | - | 10 |
| 800 | 10 | 10 | 10 | - | - | 10 | - | 5 | - | 10 |
Note: Stainless steel spring card is customized according to user requirements

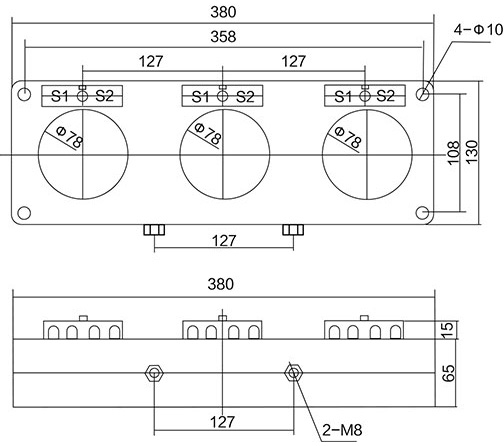

Installation Dimensions
